CD-ROM bipolar stepper motor drive with PIC16F84A and CCS PIC C compiler
This topic shows circuit schematic and C code for interfacing PIC16F84A microcontroller with CD-ROM bipolar stepper motor.Related Topics:
CD-ROM Bipolar stepper motor drive using PIC18F4550 and CCS PIC C
Bipolar stepper motor control with PIC16F877A microcontroller

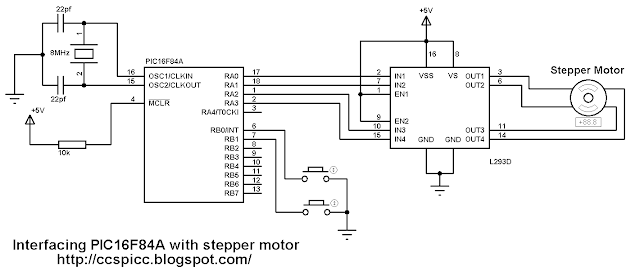

The following circuit schematic shows the connection between the microcontroller PIC16F84A and the stepper motor where a dual H-bridge circuit which is L293D chip is used between them.
![Interfacing PIC16F84A with stepper motor circuit CCS PIC C Interfacing PIC16F84A with stepper motor circuit CCS PIC C](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjEqyLiWgD0sl4qBEYUsvDcitCfc3bzu48NAVy0oJwDIM_vmkM6sPSla3zW3pbJUADJqfaDPAoGaCjSV5m8daojiVn1eEhpzZs3X549ts569vXwzW383iDYJtXGFX9ojjkbboy_A5c6GhM/s640-rw/pic16f84a-l293d-cd-rom-bipolar-stepper-motor-drive-circuit-ccs-pic-c.png)
The two pushbuttons are used to choose motor rotation direction.
Interfacing PIC16F84A microcontroller with stepper motor CCS PIC C code:
The motor speed is fixed by the code but we can change it by changing the delay between the four phases.
// Interfacing PIC16F84A with CD-ROM bipolar stepper motor CCS C code // http://ccspicc.blogspot.com/ // electronnote@gmail.com #include <16F84A.h> #fuses HS,NOWDT,PUT,NOPROTECT #use delay(clock = 8000000) #use fast_io(A) #use fast_io(B) void main() { output_a(0); set_tris_a(0); port_b_pullups(TRUE); output_b(0); set_tris_b(3); while(TRUE) { output_a(0); while(!input(PIN_B0)) { output_a(0b00000110); delay_ms(5); output_a(0b00000101); delay_ms(5); output_a(0b00001001); delay_ms(5); output_a(0b00001010); delay_ms(5); } while(!input(PIN_B1)) { output_a(0b00000101); delay_ms(5); output_a(0b00000110); delay_ms(5); output_a(0b00001010); delay_ms(5); output_a(0b00001001); delay_ms(5); } } }
Interfacing PIC16F84A microcontroller with stepper motor video: The following video shows a hardware circuit of this project.
